All In One Solar Street Light

80w Solar Street Light,Solar led Street Light

  • JCN New Energy Technology Co., limited Supply Solar led Street Light, 80w Solar Street Light
contact now datasheet
    • Features & Benefits
    • Specifications

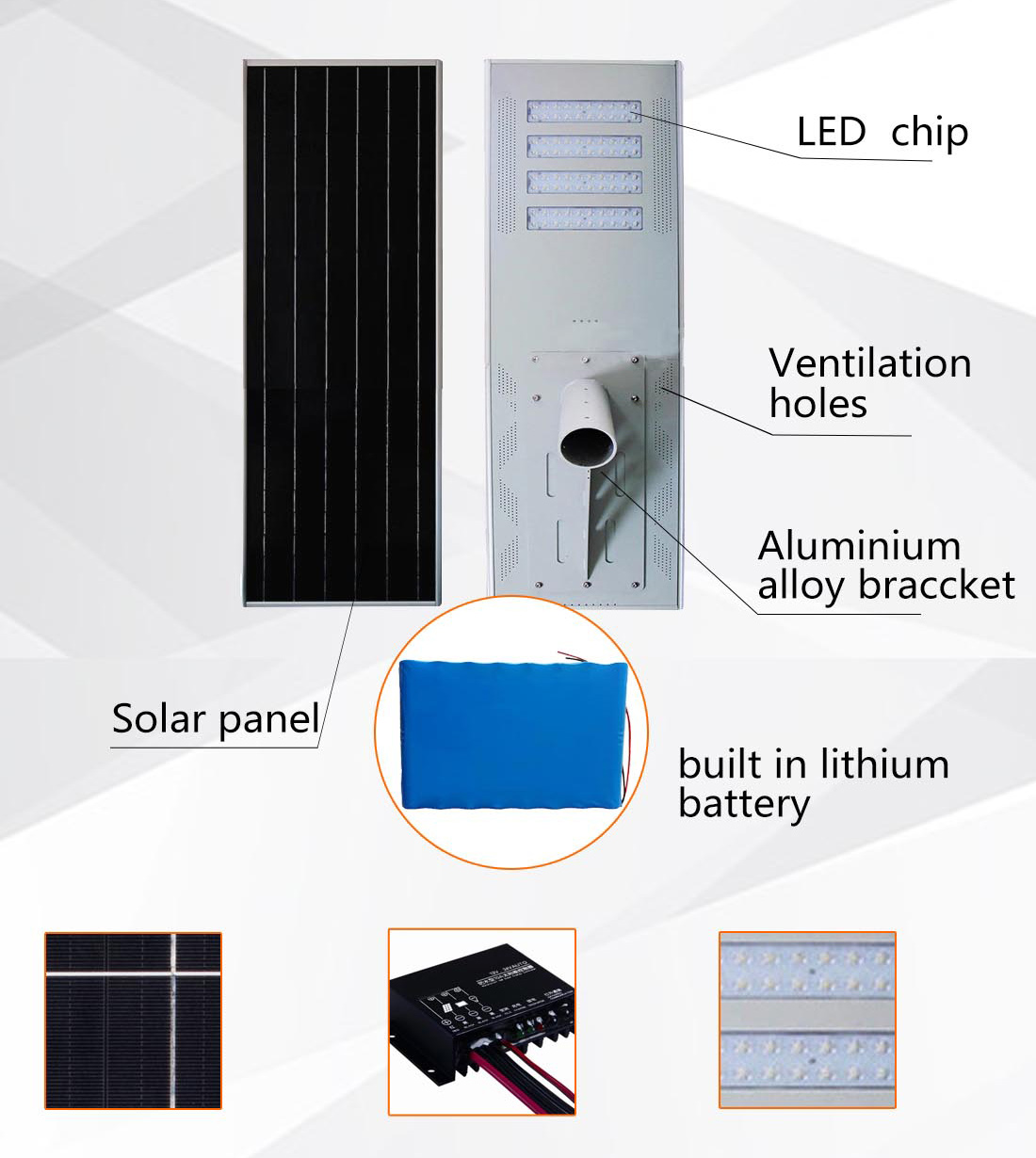

 Integrated Solar Street/Garden Light  (80W)

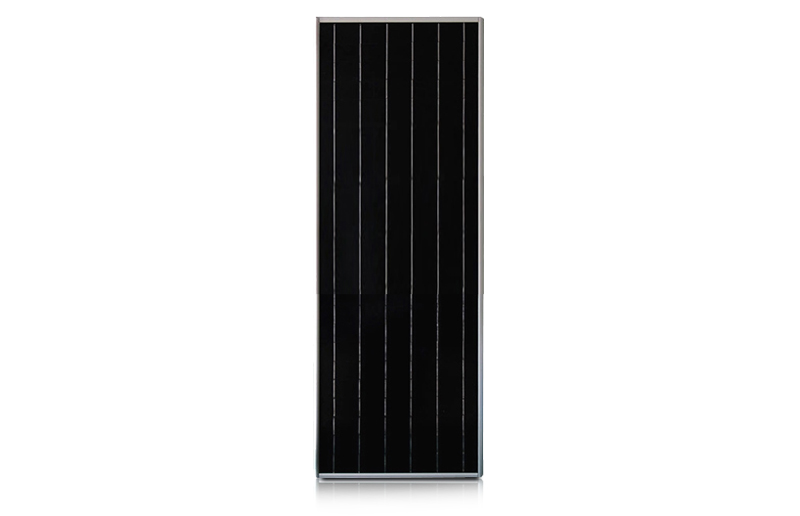

Solar panel Max power 18V100W (Sunpower monocrystalline silicon from USA)
Life time 25 years
Battery Type 12.8V 63AH (Lithium iron phosphate Battery);    brand:mottcell
Life time 5 years

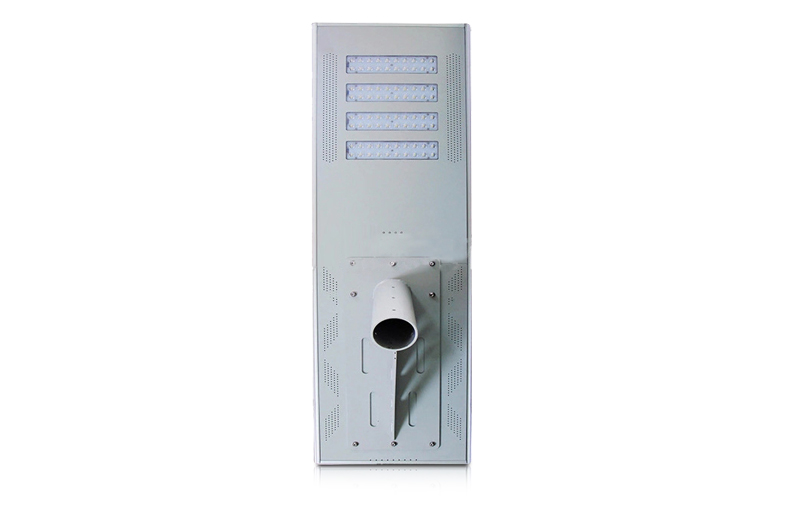

LED Lamp

(with motion sensor)

Max power 12V 80W
led chip brand Bridgelux from USA with high brightness
lumen (LM) 10400-12000lm(125-130lm/w)
Life time 50,000hours
Viewing Angle 120°
Controller Specifications 12V 10A
MPPT intelligent controller,light and time control,auto ON/OFF
Overload Protection;Over Charging Protection;Over Discharge protection
Short circuit protection;Anti reverse polarity protection
Cutting off by itself;Anti pouring charge;Anti thunder
Accessories For installation Installation bracket/Nuts/Bolts
Charge time by sun 7 hours
Discharge time full power more 15 hours
saving mode more 30 hours
working Temperature range(  ) -30~+70
colour temperature range(k) 6000-7500k (can customized)
mounting height range (m) 7-10m
space between light range (m) 25-40m
Lamps material of main aluminium alloy
Certificate CE / ROHS / IP65
warranty period 2 years
Packing & Weight product size 1200*450*160mm Carton size 1230*520*230 mm
product weight 28kg GW.for corton 30kg
Packing box neutral Q'ty/ctn 1sets/ctn
Packs Containers 20' GP 240 sets 40' GP 580sets
