All In One Solar Street Light

20w Solar Street Light,Integrated led Solar Street Light, Solar Outdoor Street Light

  • JCN New Energy Technology Co., limited Supply Integrated led Solar Street Light, Solar Outdoor Street Light,20w Solar Street Light
contact now datasheet
    • Features & Benefits
    • Specifications

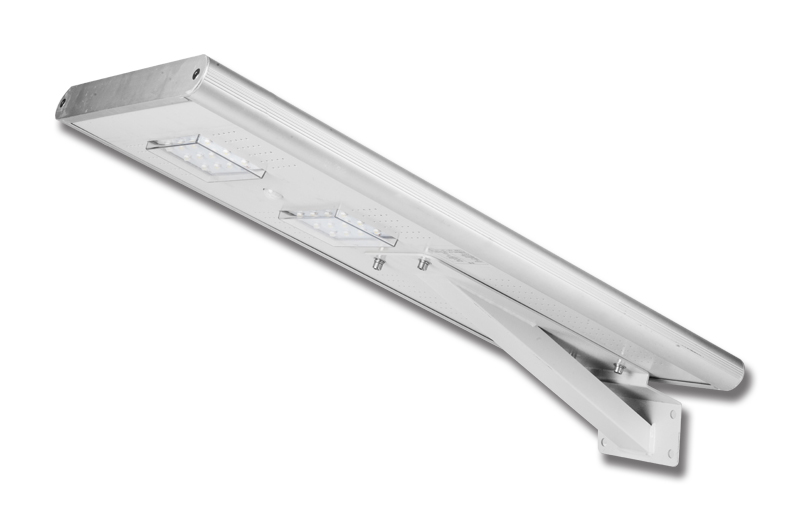

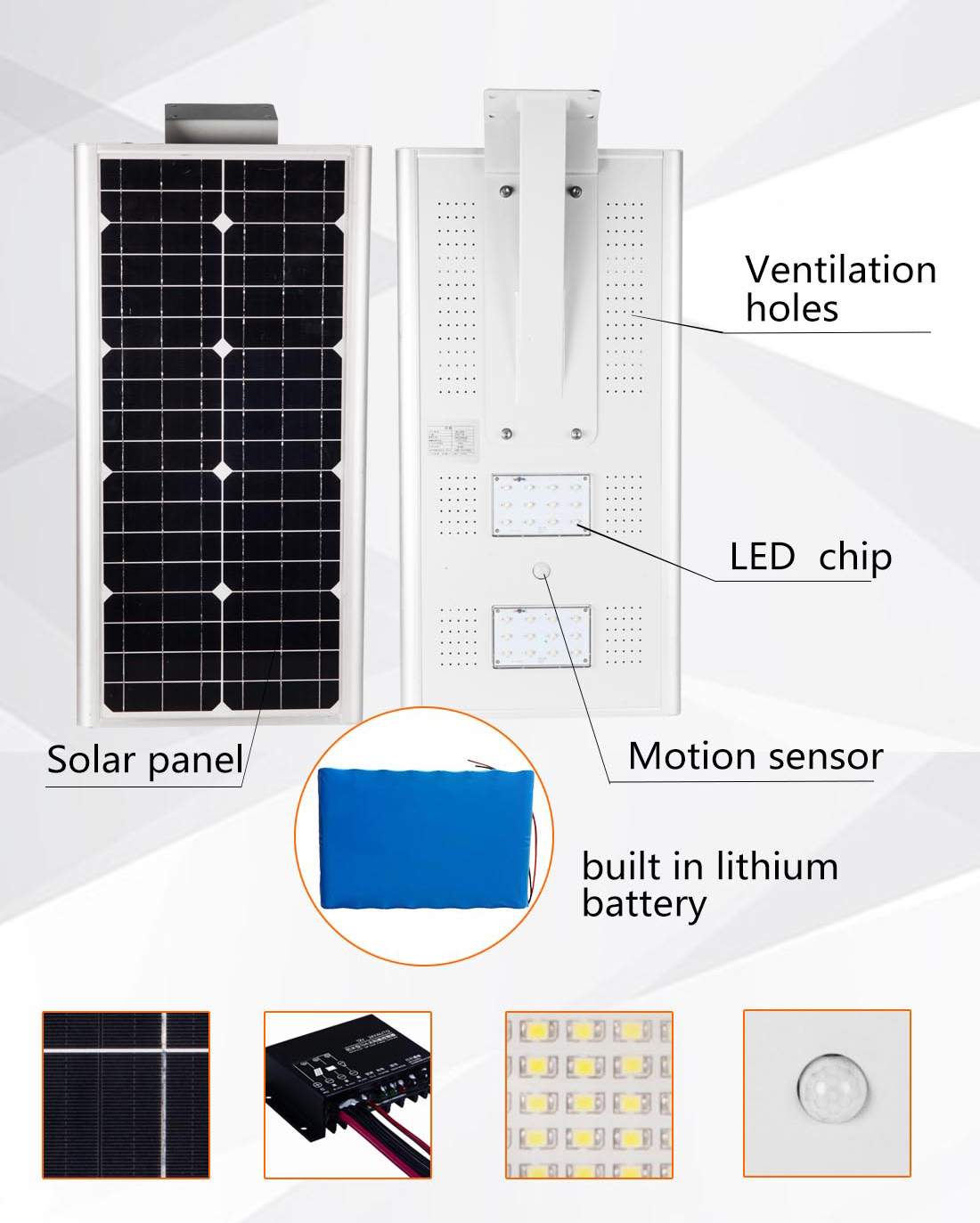

 All in one solar street/garden light  (20W)

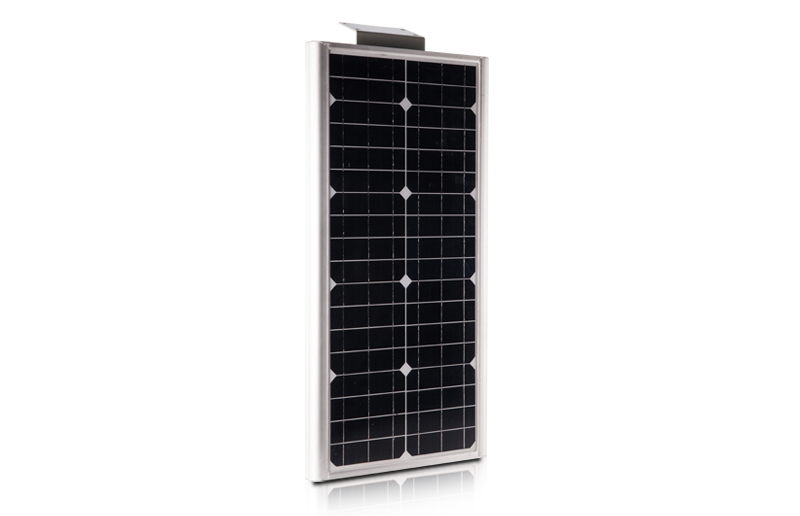

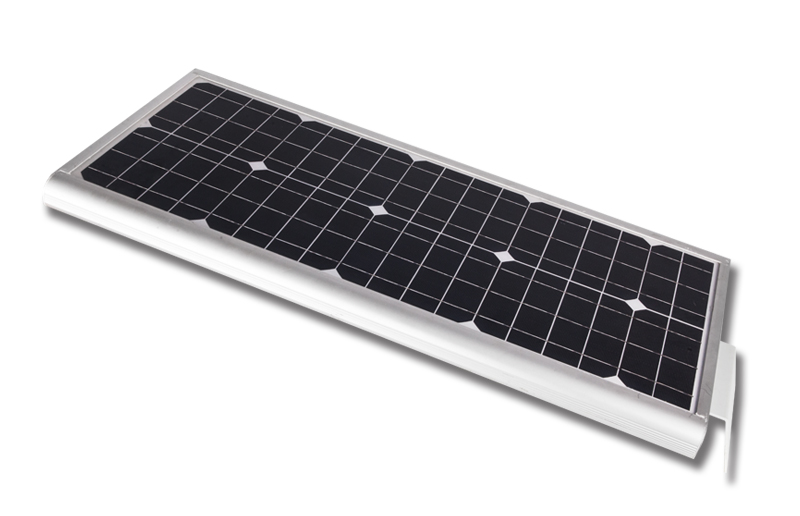

Solar panel Max power 18V 40W (high efficiency monocrystalline silicon)
Life time 25 years
Battery Type 12.8V 18AH(Lithium iron phosphate Battery);   brand:mottcell
Life time 5 years

LED Lamp

(with sensor)

Max power 12V 20W
Led chip brand Bridgelux from USA with high brightness
Lumen (LM) 2500-2600lm (125-130lm/w)
Life time 50,000hours
Viewing Angle 120°
Controller specifications 12V 10A
MPPT intelligent controller,light and time control,auto ON/OFF
Overload Protection;Over Charging Protection;Over Discharge protection
Short circuit protection;Anti reverse polarity protection
Cutting off by itself;Anti pouring charge;Anti thunder
Accessories For installation Installation bracket/Nuts/Bolts
Charge time By sun 7 hours (with enough strong shine)
Discharge time Full power more 20 hours
Saving mode more 40 hours
Working Temperature Range(  ) -30~+70
Colour temperature Range(k) 6000-7500k (can customized)
Mounting height Range (m) 5-6m
Space between light Range (m) 18-20m
Lamps material of main Aluminium alloy
Certificate CE / ROHS / IP65
Warranty period 2 years
Packing & Weight Product size 920*330*140mm Carton size 950*410*210 mm
Product weight 12.5kg GW.for carton 15 kg
Packing box neutral Q'ty/ctn 1sets/ctn
Packs Containers 20' GP 375sets 40' GP 792sets

1.Sample Price and Wholesale Price in this offer are based on EXW price, not including shipping costs , tax and duties;
2.More quantity, more discount;

3.Payment methodT/T 100% or Western Union 100% Under USD30,0030% Deposit and 70% before delivery for more than USD 30,00;
4.Quotation validity: 20 days.
