All In One Solar Street Light

50W Solar Street Light,All In One Solar Garden Light

  • JCN New Energy Technology Co., limited Supply All In One Solar Garden Light,50w Solar Street Light
contact now datasheet
    • Features & Benefits
    • Specifications

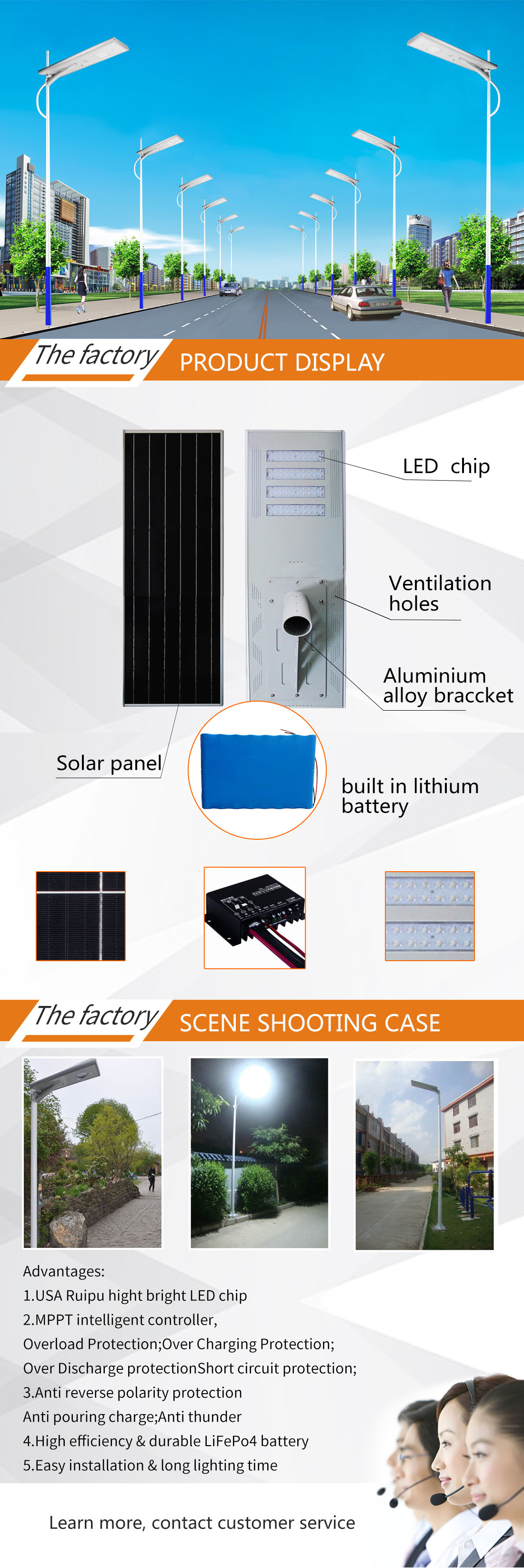

 All in one solar street/garden light  (50W)

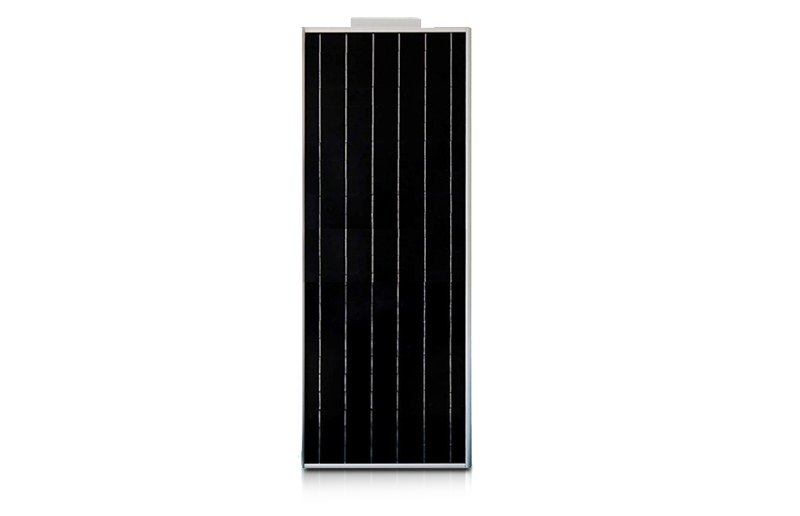

Solar panel Max power 18V 70W (Sunpower monocrystalline silicon from USA)
Life time 25 years
Battery Type 12.8V 36AH(Lithium iron phosphate Battery);   brand:mottcell
Life time 5 years

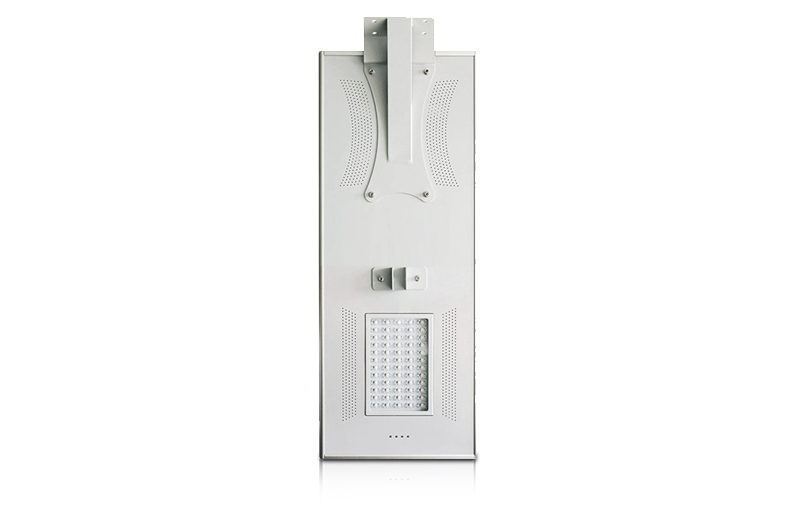

LED Lamp    (with motion sensor) Max power 12V 50W
Led chip brand Bridgelux from USA with high brightness
Lumen (LM) 6250-6500lm (125-130lm/w)
Life time 50,000hours
Viewing Angle 120°
Controller Specifications 12V 10A
MPPT intelligent controller,light and time control,auto ON/OFF
Overload Protection;Over Charging Protection;Over Discharge protection
Short circuit protection;Anti reverse polarity protection
Cutting off by itself;Anti pouring charge;Anti thunder
Accessories For installation Installation bracket/Nuts/Bolts
Charge time By sun 6 hours
Discharge time Full power more 15 hours
Saving mode more 30 hours
Working Temperature Range(  ) -30~+70
Colour temperature Range(k) 6000-7500k (can customized)
Mounting height Range (m) 7-9m
Space between light Range (m) 25-30m
Lamps material of main Aluminium alloy
Certificate CE / ROHS / IP65
Warranty period 2 years
Packing & Weight Product size 1200*380*160mm Corton size 1230*460*230 mm
Product weight 21kg GW.for corton 24.5kg
Packing box neutral Q'ty/ctn 1sets/ctn
Packs Containers 20' GP 280 sets 40' GP 620sets

Service Online
