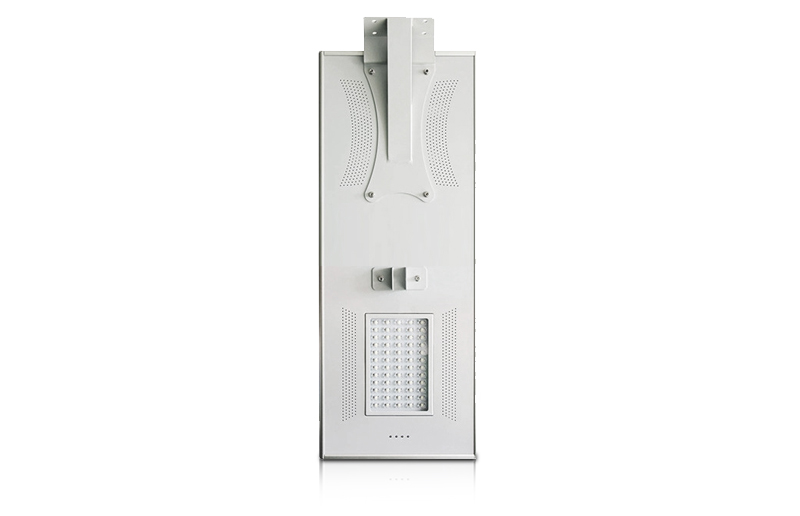

All In One Solar Street Light

60W Solar Street Light,Integrated Solar Light, All In One Solar Light

  • JCN New Energy Technology Co., limited Supply Integrated Solar Light, All In One Solar Light,60w Solar Street Light
contact now datasheet
    • Features & Benefits
    • Specifications



 All in one solar street/garden light  (60W)

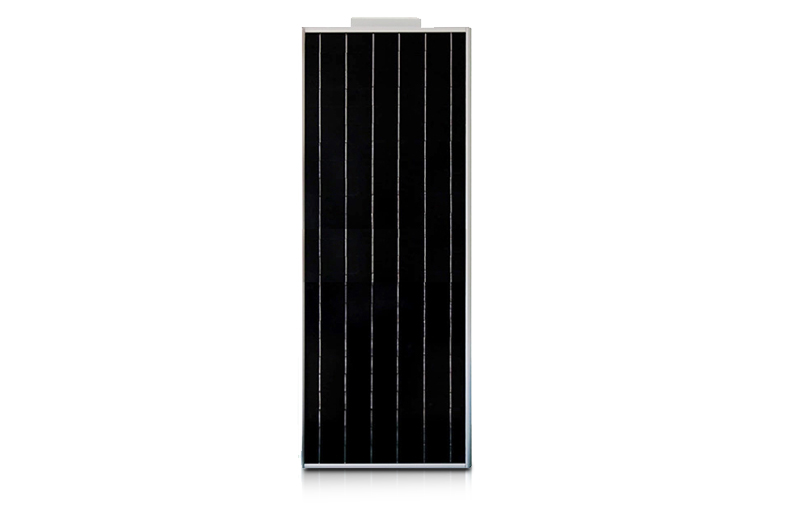

Solar panel Max power 18V 80W (Sunpower monocrystalline silicon from USA)
Life time 25 years
Battery Type 12.8V 42AH(Lithium iron phosphate Battery);     brand:mottcell
Life time 5 years

LED Lamp

(with motion sensor)

Max power 12V 60W
Led chip brand Bridgelux from USA with high brightness
Lumen (LM) 7500-7800lm (125-130lm/w)
Life time 50,000hours
Viewing Angle 120°
Controller Specifications 24V 10A
MPPT intelligent controller,light and time control,auto ON/OFF
Overload Protection;Over Charging Protection;Over Discharge protection
Short circuit protection;Anti reverse polarity protection
Cutting off by itself;Anti pouring charge;Anti thunder
Accessories For installation Installation bracket/Nuts/Bolts
Charge time By sun 6 hours
Discharge time Full power more 15 hours
Saving mode more 30 hours
Working Temperature Range(  ) -30~+70
Colour temperature Range(k) 6000-7500k (can customized)
Mounting height Range (m) 7-9m
Wpace between light Range (m) 25-30m
Lamps material of main Aluminium alloy
Certificate CE / ROHS / IP65
Warranty period 2 years
Packing & Weight Product size 1200*380*160mm Carton size 1230*460*230 mm
Product weight 22kg GW.for carton 25.5kg
Packing box neutral Q'ty/ctn 1sets/ctn
Packs Containers 20' GP 280 sets 40' GP 620 sets

Service Online
