Off Grid Solar System

10KW Solar Power System Home,Solar Generator System

  • JCN company supply 10kw solar power system home,solar generator system
contact now datasheet
    • Features & Benefits
    • Specifications

Technical Parameter

Model

TN192V10KW-50A

Rated output power

10000w

Battery voltage

192v

Solar controller

 192v50a(The configuration can according to customer requirements)

Solar PV module maximum voltage

≤400vdc

AC output voltage

General:220v±3%;50Hz±1Hz(Can be changed according to customer requirements)

Output wave

Pure sine wave

Plug

International general (Can be selected by customer)

Conversion efficiency

90%

City electricity complementary function

Yes

Overload protection

Yes

Low voltage protection

Yes

Overheat protection

Yes

Short-circuit protection

Yes

Battery electric power display

Yes

Charging function of city electricity

Yes(≤10A)

Output isolation

Yes

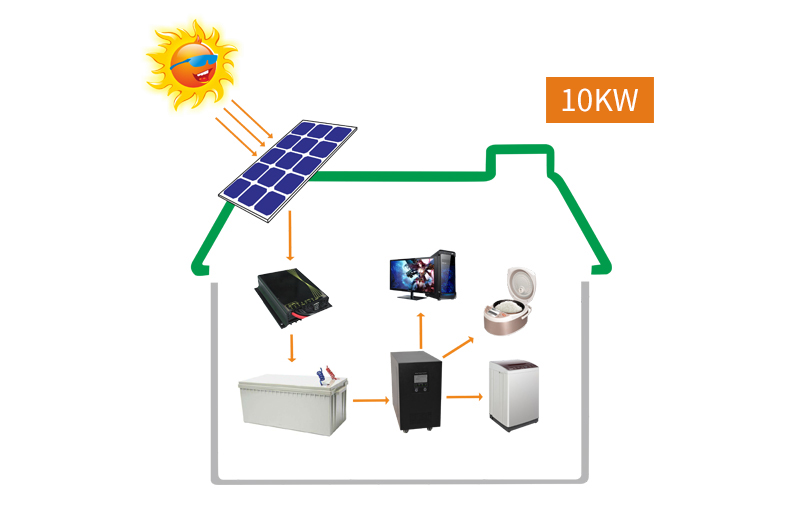

System configuration


Accessory name

Model details

1

 Inverter

10000w192v

2

Controller

192v50a

3

Solar panel

Mono solar panel250w*32pcs

4

Bracket

1 set

5

Lead-acid battery

12v250ah*16pcs

6

MC4 tee joint,Cable,Battery connection line

MC4 tee joint:2pairs,

Cable:4pcs 10M 6mm cablewith MC4 connector line(two red & two black);

4pcs 5M 10mm cablewith lug connector line(two red & two black)

15pcs 0.2M 10mm cable with lug connector line (black)

System equipment weight、Size

Inverter weight、Size(L*W*H)

90kg*1set  、700*370*990mm

Controller box weight、Size(L*W*H)

15kg*1set、417*360*118mm

Solar PV module weight、Size(L*W*H)

20kg*32PCS、1642*992*50mm

Battery weight、Size(L*W*H)

73kg *16PCS 、520*268*220(243)mm

System total weight

About1950kg(without bracket)

Generating capacity(solar PV module power rate*5hours sunshine time*80%)

The average daily sunshine time≥5 hrs area it's generating capacity is≥32kwh

Power supply time(Load power supply time:generating capacity *efficiency/load total power)

Load appliance

Power

Number

Continuous supply time in rainy days

White woven lamp

75w

10pcs

34hrs

29cunLCDTV

150w

2set

85hrs

Double-door refrigerator

120w

2set

106hrs

Fan

60w

6set

71hrs

Washing machine

350w

2set

36hrs

Computer

220w

4set

29hrs

Air-conditioner

750W

3set

11hrs
