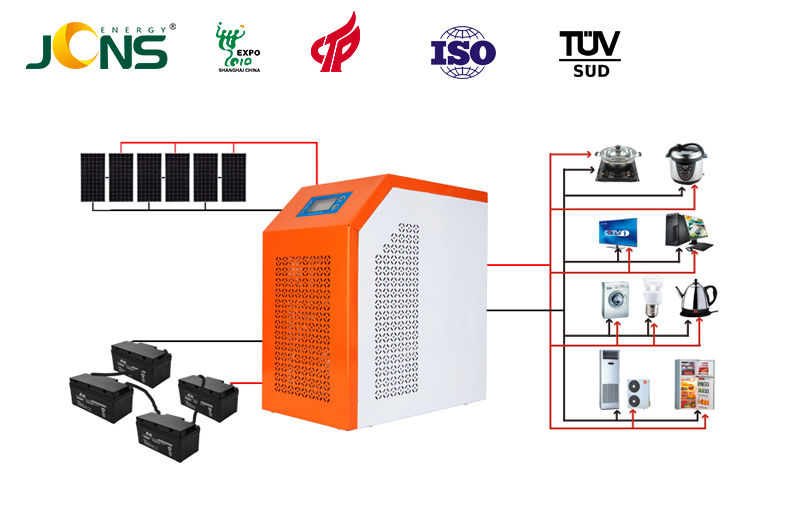

Off Grid Solar System
| Description | Item Model No. | Specification | Picture | Size(mm) | Qty's（Pcs） | Pcs/Ctn | Packing size(mm) | Total G.W(KGS) |
| Solar panel (Poly) | JCN-P300-36 |
(Pmax):300w (Voc) : 45.49v (Isc) : 9.01A (Vmp) :36V (Imp):8.41A |
|
1942*992*40 | 2 | 2 | 1960*1005*100 | 48 |

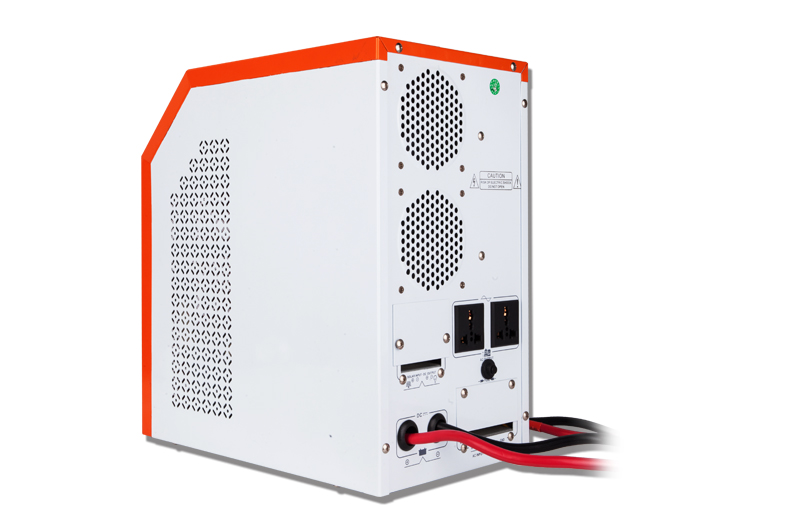

| Inverter | JCNS-20224-30 |
Rated capacity:2000w Input voltage:DC 24v
Output voltage:AC 220v |
|
420*200*330 | 1 | 1 | 21 | |

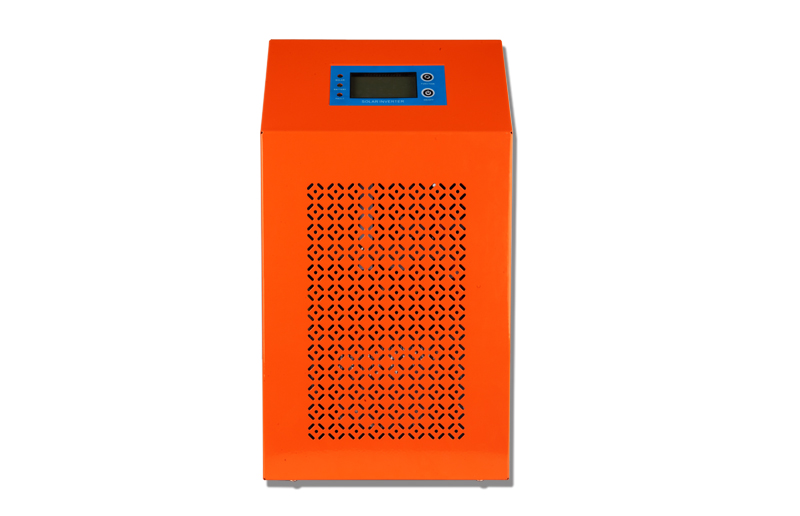

| Controller |
Rated current:30A
Rated voltage:24V |
|||||||
| Battery | JCN-12V200AH |
Nominal capacity:200ah Nominal voltage:12V Sealed type:Sealed-Lead acid |
|
12V200Ah 522*240*218 |
4 | 1 | 531*248*265 | 216 |
| Cable | 4sqmm | 40M |
|
1 | 2 |
