Off Grid Solar System

5kw Solar System,Off Grid Solar System,Off Grid Solar Power System

  • JCN company supply off grid solar system,off grid solar power system,5kw Solar System
contact now datasheet
    • Features & Benefits
    • Specifications









Description Item Model No. Specification  Size(mm) Qty'sPcs Pcs/Ctn Packing size(mm) Total G.W(KGS)
Solar panel (Poly) JCN-P300-36

(Pmax):300w

(Voc) : 45.49v

(Isc) :  9.01A

(Vmp) :36V

(Imp):8.41A

1935*986*45 10 1 1950*1000*60 240

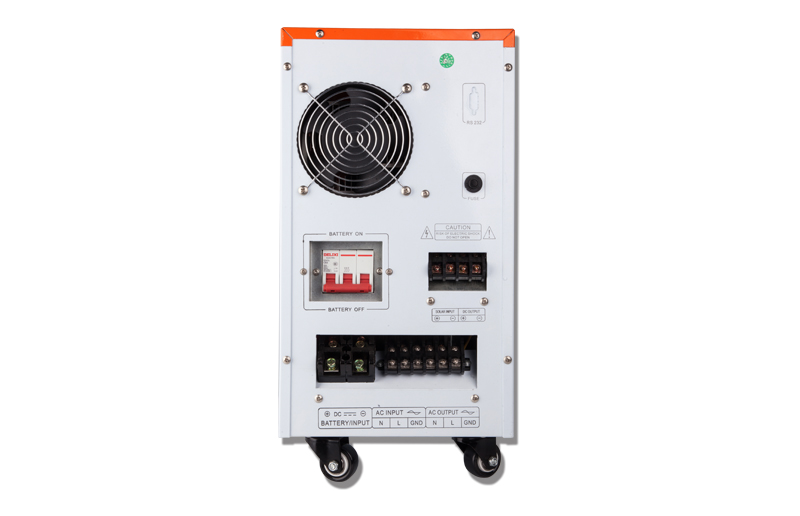

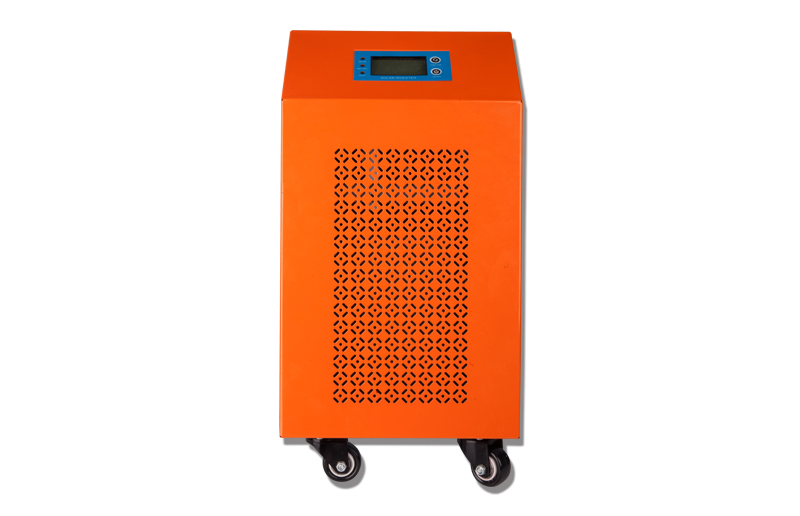

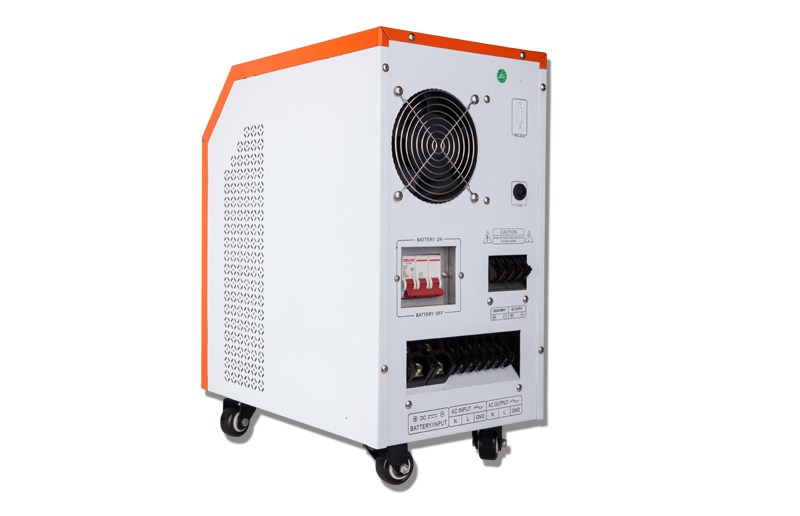

Inverter     JCNS-50248-50

Rated capacity:5000w Input voltage:DC 48v


Output voltage:AC 220v
Pure sine wave


490*300*660 1 1 560*300*510 58
Controller
Rated current:50A             Rated voltage:48V
Charge mode:PWM
Battery JCN-12V200AH

Nominal capacity:200ah  Nominal voltage:12V

Sealed type:Sealed -Lead acid

12V200Ah
522*240*218
12 1 531*248*265 648
Cable 4sqmm 80m 4
