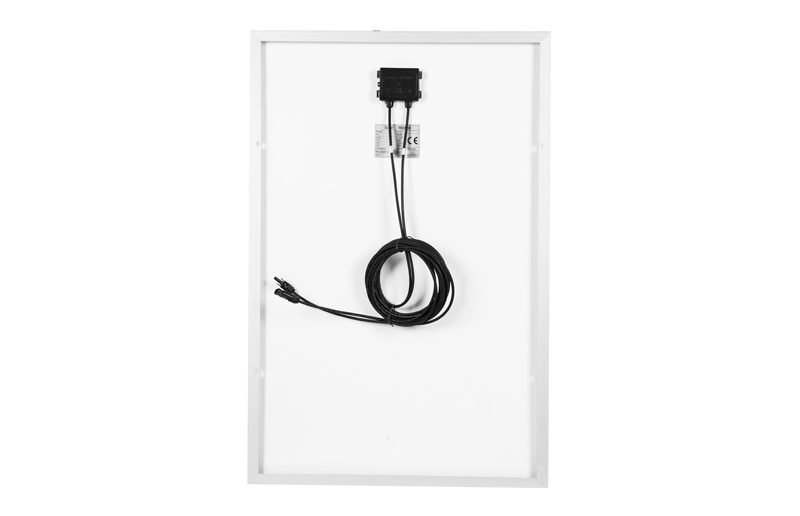

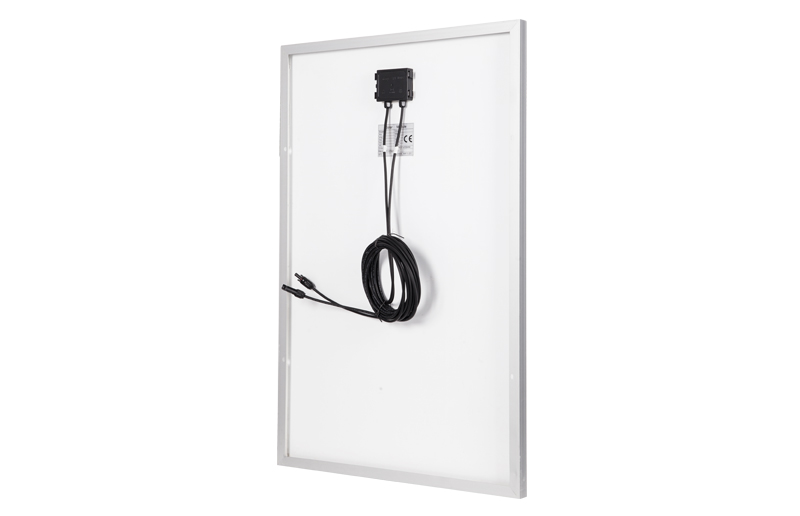

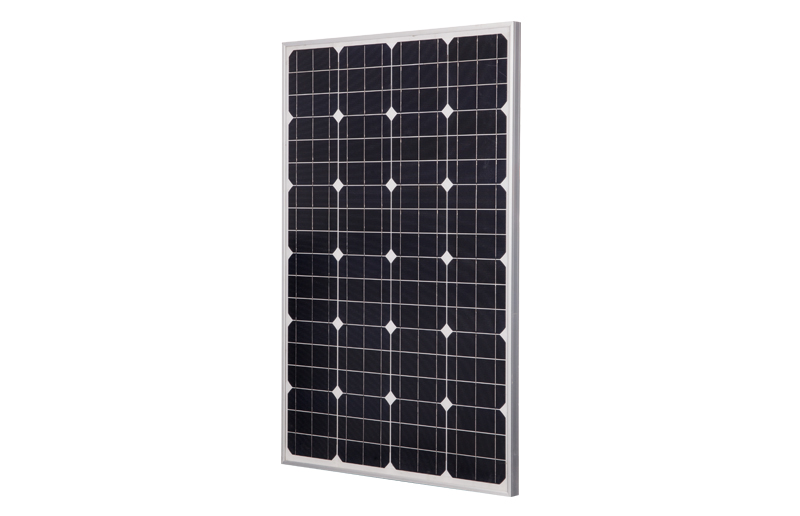

Mono Solar Panel
Technical Parameter of Mono Solar Panel
| Type Of Module | JCN-M100 | JCN-M105 | JCN-M110 | JCN-M115 | ||||
| Maximum Power (W) | 100 | 105 | 110 | 115 | ||||
| Tolerance (%) | ± 3% | ± 3% | ± 3% | ± 3% | ||||
| Open Circuit Voltage (V) | 22.5 | 22.5 | 22.5 | 22.5 | ||||
| Maximum Power Voltage (V) | 17.96 | 17.96 | 17.96 | 17.96 | ||||
| Maximum Power Current (A) | 5.57 | 5.85 | 6.12 | 6.4 | ||||
| Short Circuit Current (A) | 6.1 | 6.4 | 6.7 | 7 | ||||
| Module Efficiency (%) | 14.7 | 15.4 | 16.2 | 16.9 | ||||
| Solar Cell Efficiency (%) | 18 | 19.4 | 20.2 | 21.1 | ||||
| Series Fuse Rating (A) | 10 | 10 | 10 | 10 | ||||

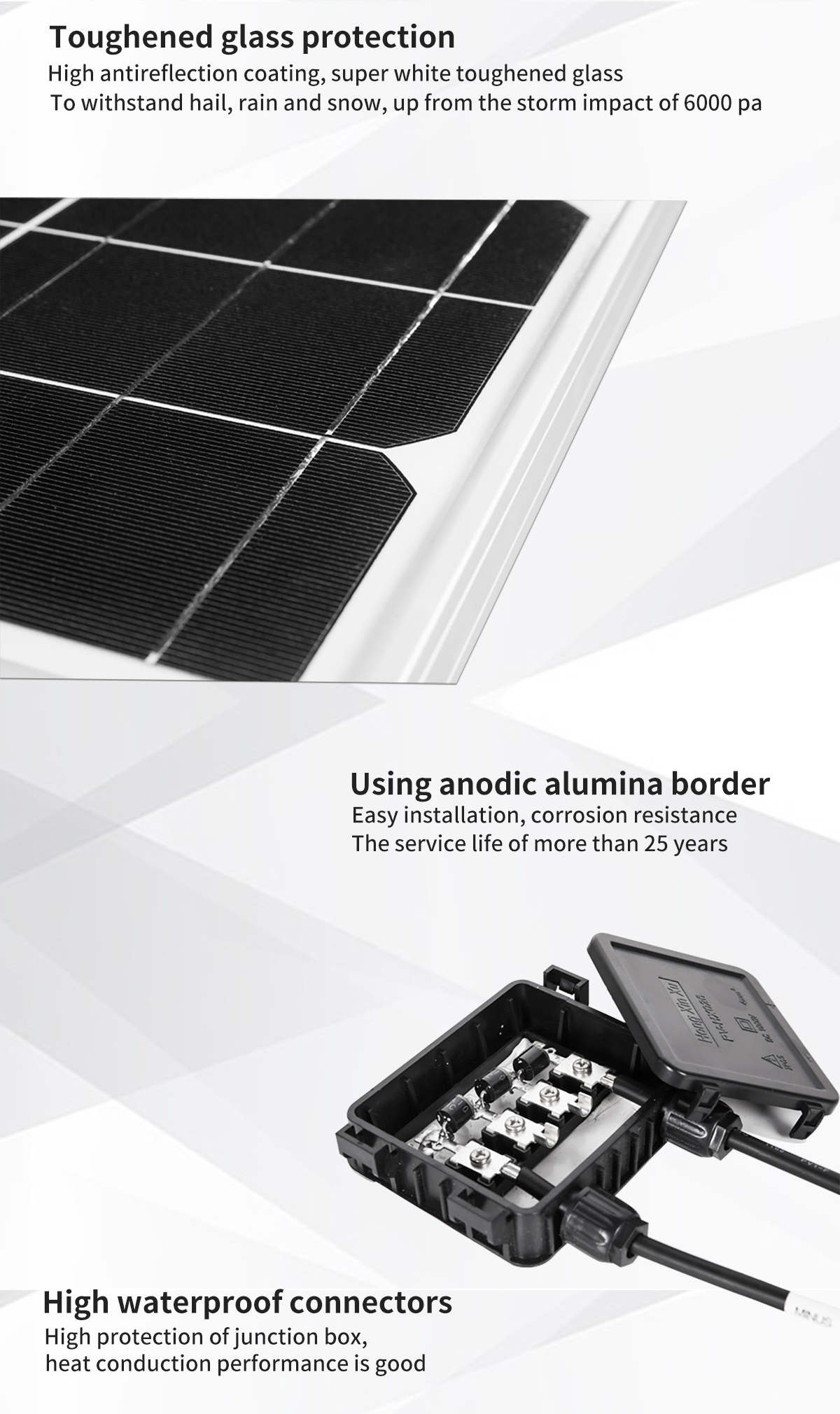

| Terminal Box | IP65 | IP65 | IP65 | IP65 | ||||
| Maximum system voltage (V) | DC1000 | DC1000 | DC1000 | DC1000 | ||||
| Operating Temperature(℃) | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | ||||
