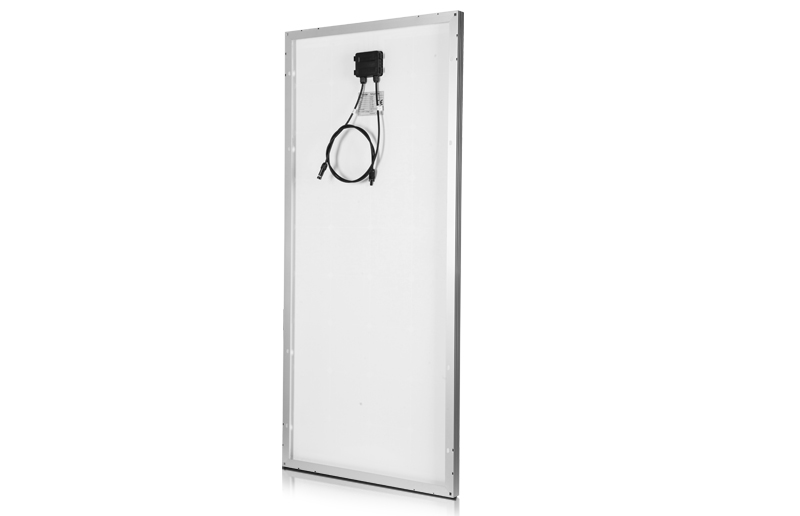

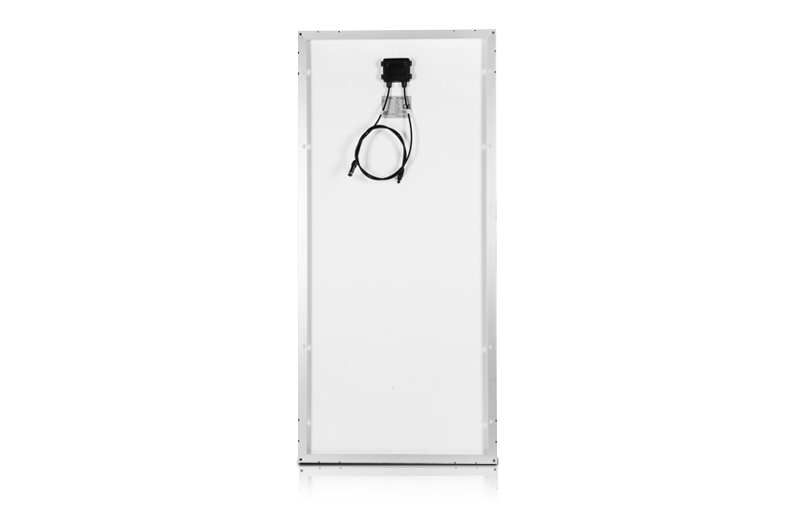

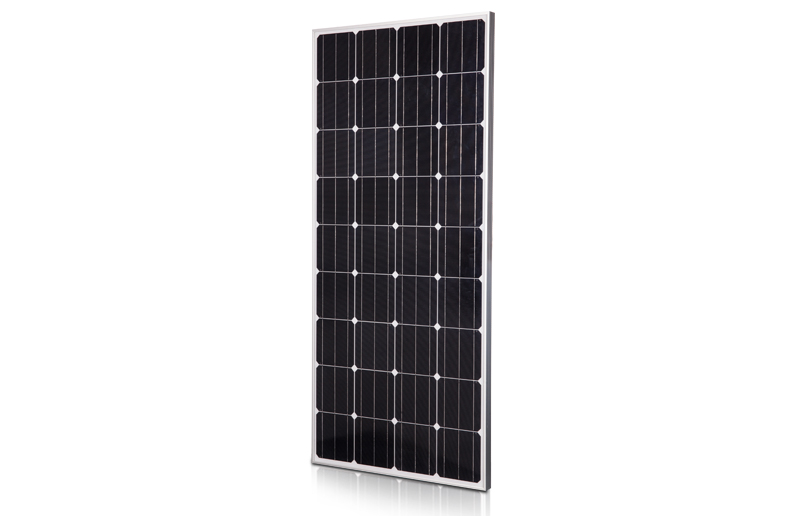

Mono Solar Panel
Technical Parameter of Mono Solar Panel
| Type Of Module | JCN-M150 | JCN-M160 | JCN-M170 | JCN-M175 | ||||
| Maximum Power (W) | 150 | 160 | 170 | 175 | ||||
| Tolerance (%) | ± 3% | ± 3% | ± 3% | ± 3% | ||||
| Open Circuit Voltage (V) | 22.5 | 22.5 | 22.5 | 22.5 | ||||
| Maximum Power Voltage (V) | 17.96 | 17.96 | 17.96 | 17.96 | ||||
| Maximum Power Current (A) | 8.35 | 8.91 | 9.47 | 9.74 | ||||
| Short Circuit Current (A) | 9.2 | 9.8 | 10.4 | 10.7 | ||||
| Module Efficiency (%) | 15.3 | 16.4 | 17.4 | 17.9 | ||||
| Solar Cell Efficiency (%) | 18 | 18.6 | 20.2 | 20.8 | ||||
| Series Fuse Rating (A) | 10 | 10 | 15 | 15 | ||||
| Terminal Box | IP65 | IP65 | IP65 | IP65 | ||||
| Maximum system voltage (V) | DC1000 | DC1000 | DC1000 | DC1000 | ||||
| Operating Temperature(℃) | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | ||||
