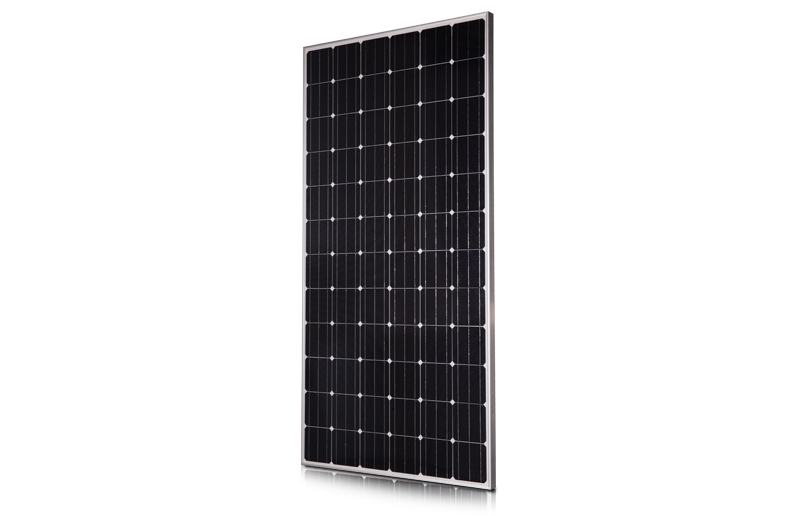

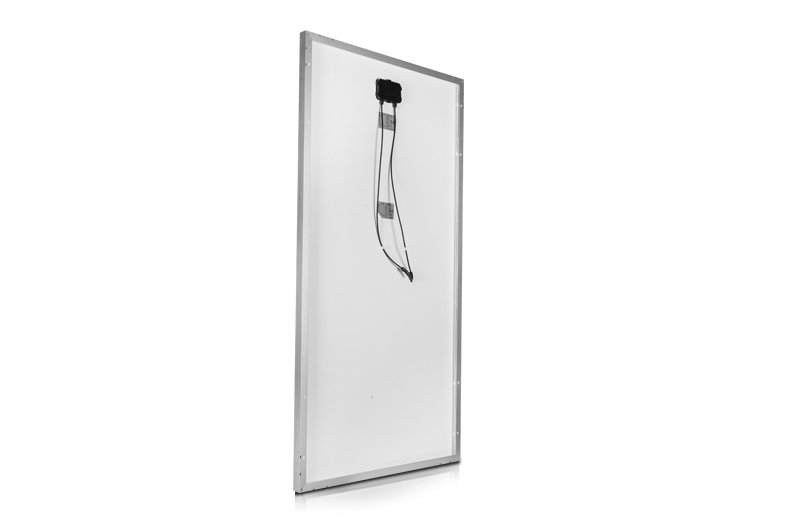

Mono Solar Panel

310w Mono Solar Panel,Solar Power Panels,Solar Energy Panels

  • JCN company supply high quality 310w solar panel,solar power panels,solar energy panels,the solar cell effciency can be reached 18%-21%.
contact now datasheet
    • Features & Benefits
    • Specifications



 Technical Parameter of Mono Solar Panel



Type Of Module JCN-M300 JCN-M310 JCN-M320 JCN-M325 JCN-M330
Maximum Power (W) 300 310 320 325 330
Tolerance (%) ± 3% ± 3% ± 3% ± 3% ± 3%
Open Circuit Voltage (V) 43.92 43.92 43.92 43.92 43.92
Maximum Power Voltage (V) 35.14 35.14 35.14 35.14 35.14
Maximum Power Current (A) 8.54 8.82 9.11 9.25 9.39
Short Circuit Current (A) 10.2 10.6 10.9 11.1 11.3
Module Efficiency (%) 15.5 16 16.5 16.8 17.1
Solar Cell Efficiency (%) 18.4 19 19.6 20 20.2
Series Fuse Rating (A) 10 10 10 10 10

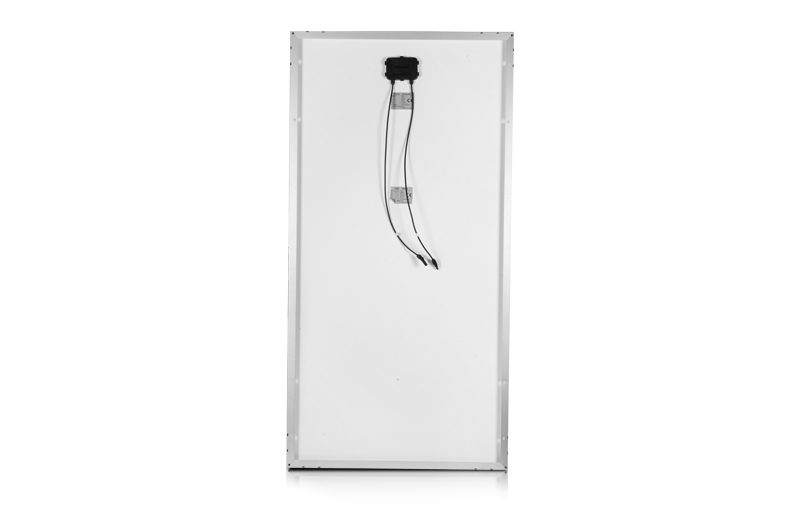

Terminal Box  IP65  IP65  IP65  IP65  IP65
Maximum system voltage (V)   DC1000 DC1000 DC1000 DC1000 DC1000
Operating Temperature(℃) -40 ---85 -40 ---85 -40 ---85 -40 ---85 -40 ---85
