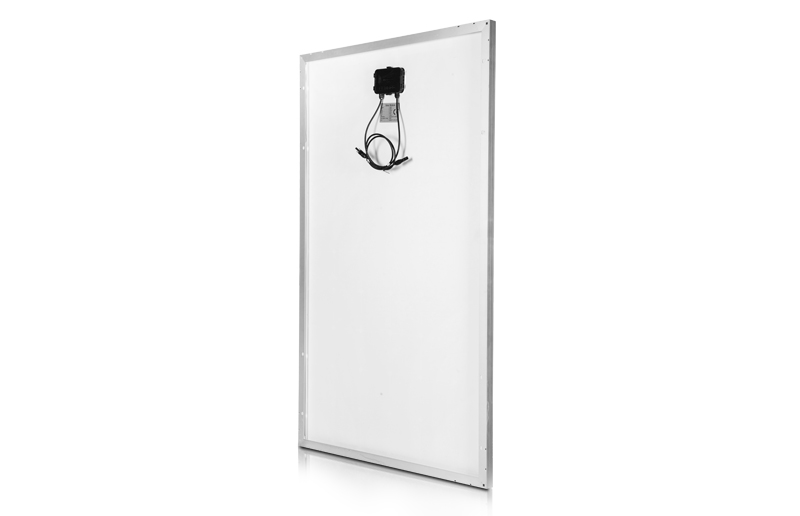

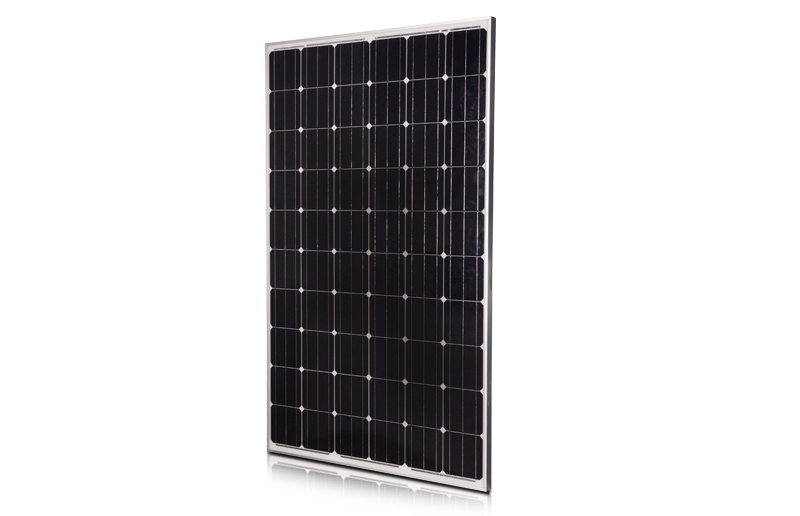

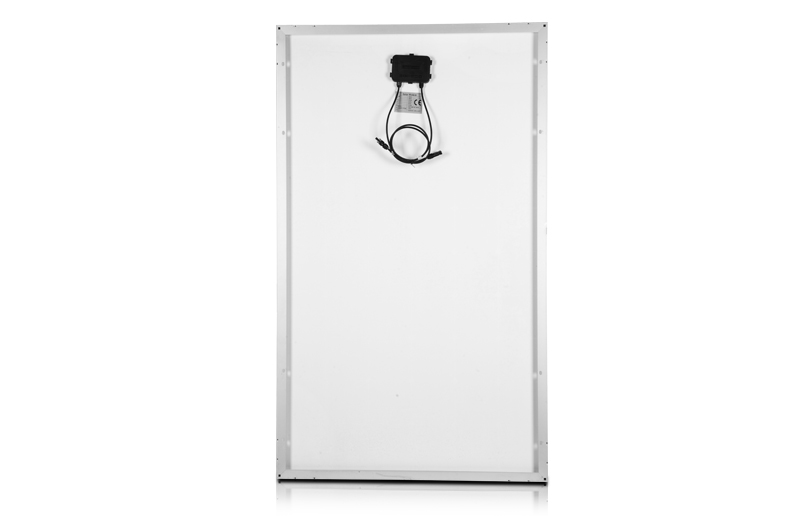

Mono Solar Panel
Technical Parameter of Mono Solar Panel
|
Type Of Module
|
JCN-M250 | JCN-M260 | JCN-M270 | JCN-M280 | JCN-M285 | |||
| Maximum Power (W) | 250 | 260 | 270 | 280 | 285 | |||
| Tolerance (%) | ± 3% | ± 3% | ± 3% | ± 3% | ± 3% | |||
| Open Circuit Voltage (V) | 37.5 | 37.5 | 37.5 | 37.5 | 37.5 | |||
| Maximum Power Voltage (V) | 29.93 | 29.93 | 29.93 | 29.93 | 29.93 | |||
| Maximum Power Current (A) | 8.35 | 8.69 | 9.02 | 9.36 | 9.52 | |||
| Short Circuit Current (A) | 9.2 | 9.6 | 9.9 | 10.3 | 10.5 | |||
| Module Efficiency (%) | 15.4 | 16 | 16.6 | 17.2 | 17.5 | |||
| Solar Cell Efficiency (%) | 18.4 | 19.2 | 20 | 20.6 | 20.9 | |||
| Series Fuse Rating (A) | 15 | 15 | 15 | 15 | 15 | |||

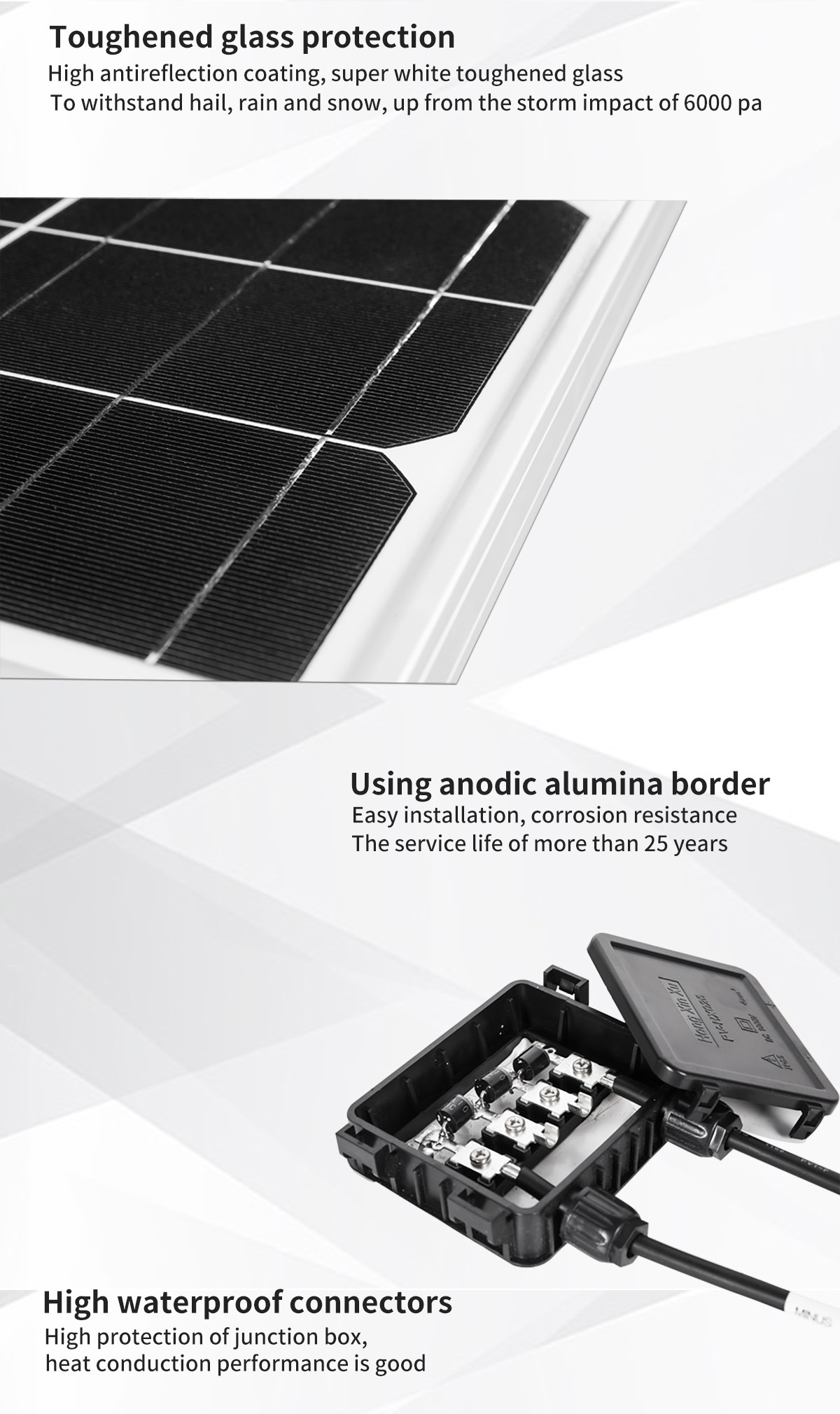

| Terminal Box | IP65 | IP65 | IP65 | IP65 | IP65 | |||
| Maximum system voltage (V) | DC1000 | DC1000 | DC1000 | DC1000 | DC1000 | |||
| Operating Temperature(℃) | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | |||
