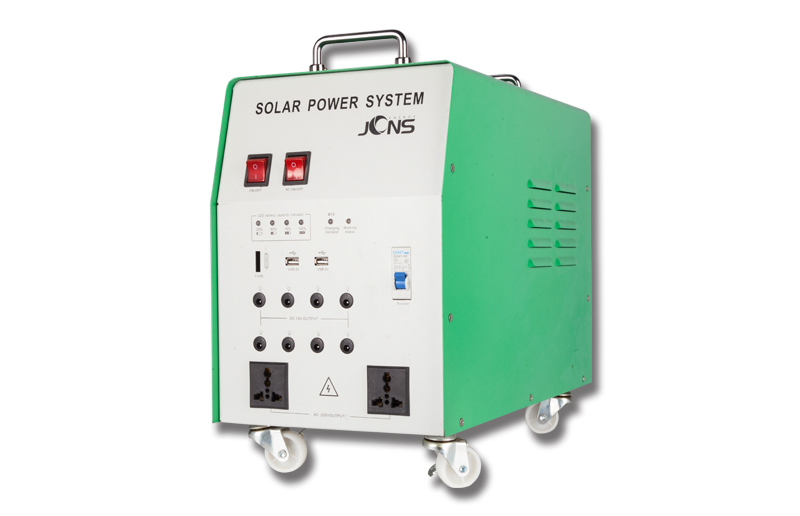

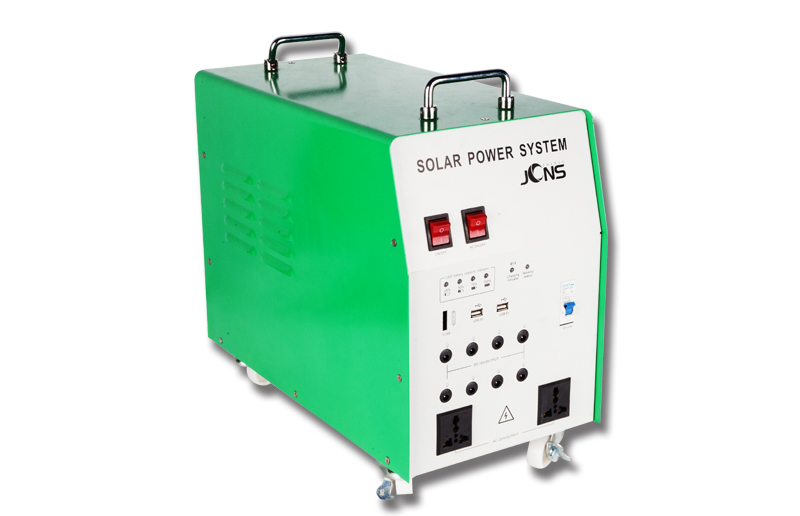

500w Solar Power System,Solar Power System,Solar Energy System,500w Solar Energy System

  • JCN New Energy Technology Co., limited Supply Solar Power System,Solar Energy System,500w Solar Power System,500w Solar Energy System
contact now datasheet
    • Features & Benefits
    • Specifications


                                                                                                             Parameter Specification


Solar panel

18V solar panels lower than 200W(no-load21.5V)

Inverter

DC12V-AC220V 500W Pure sine

Output volt

DC12V x 8 output portsMax output current5A

USB 5V 1A x2output ports

AC 220Vx2 output portsMax output current2A

Internal battery

12V45AH~65AHmaintenance-free lead-acid battery

Charging time

 Depends on recharge method

Recharging time

Depends on loading power

Rated charging current

20A

Rated discharge current

5A

System volt

12V

No-load loss

<50mA

Overvoltage

14.4V

Boost voltage

15V

undervoltage

11.6V

Overdischarge volt

10.5V

Control mode

rechargePWM(pulse width modulation)

Working temperature

-100C ~+550C

Overload/short circuit protection

10ms Response

Guard circuit

Overload/short circuit protection

Burn the fuse
