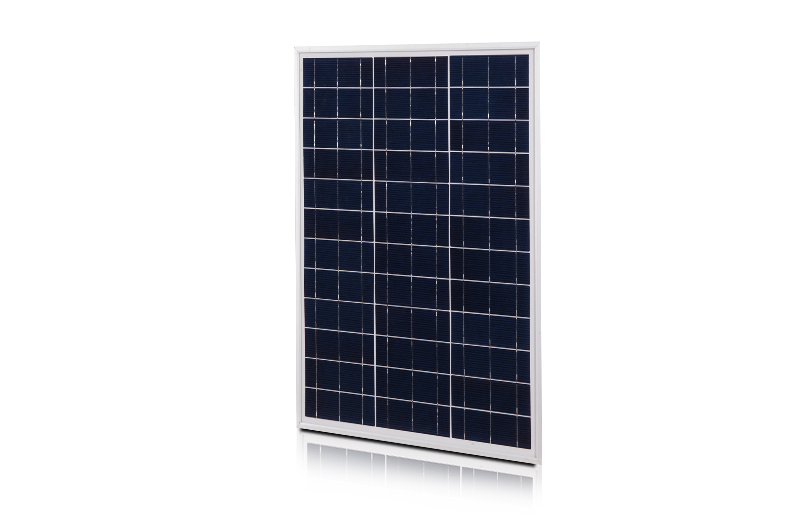

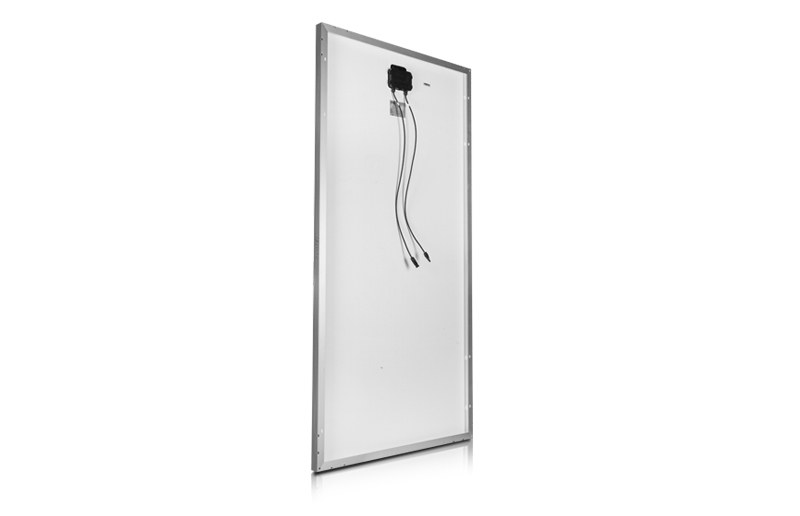

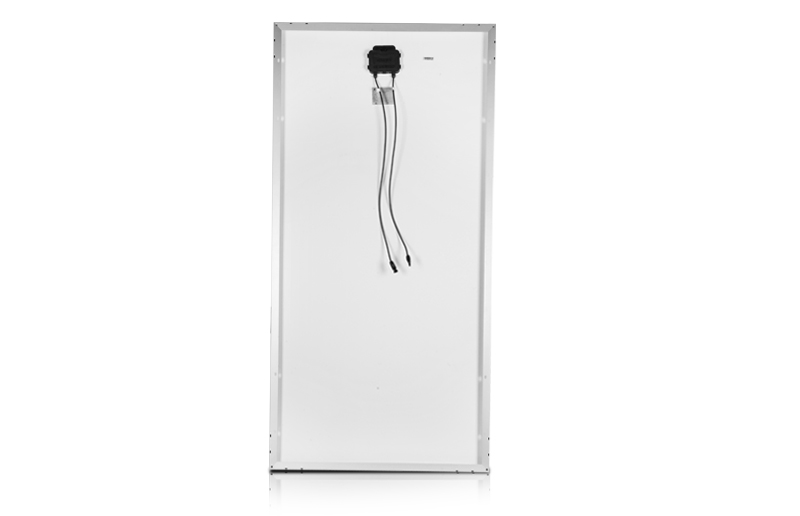

Technical Parameter of Poly Solar Panel
Type Of Module | JCN-P290 | JCN-P300 | JCN-P305 | JCN-P310 | ||||
Maximum Power (W)功率 | 290 | 300 | 305 | 310 | ||||
Tolerance (%)正负公差 | ± 3% | ± 3% | ± 3% | ± 3% | ||||
Open Circuit Voltage (V)开路电压 | 43.92 | 43.92 | 43.92 | 43.92 | ||||
Maximum Power Voltage (V)工作电压 | 35.14 | 35.14 | 35.14 | 35.14 | ||||
Maximum Power Current (A)工作电流 | 8.25 | 8.54 | 8.68 | 8.82 | ||||
Short Circuit Current (A)短路电流 | 9.9 | 10.2 | 10.4 | 10.6 | ||||
Module Efficiency (%)组件转换率 | 15.2 | 15.7 | 16 | 16.2 | ||||
Solar Cell Efficiency (%)电池片转换率 | 16.6 | 17.1 | 17.4 | 17.7 | ||||
Series Fuse Rating (A)保险丝等级 | 10 | 10 | 10 | 10 | ||||

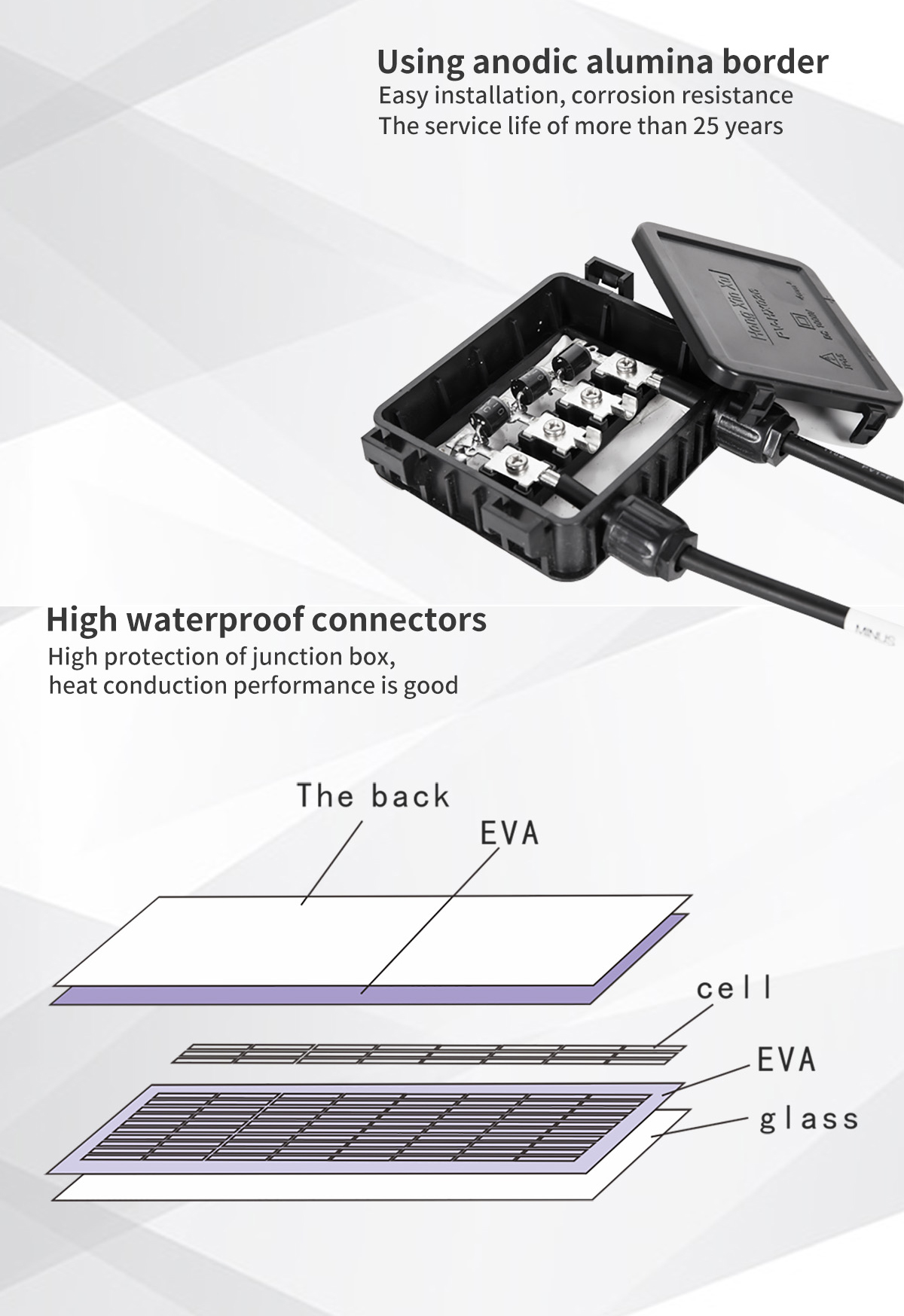

Terminal Box 接线盒防水等级 | IP65 | IP65 | IP65 | IP65 | ||||
Maximum system voltage (V) 系统耐压 | DC1000 | DC1000 | DC1000 | DC1000 | ||||
Operating Temperature(℃)工作温度范围 | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ | -40℃ ---85℃ |
